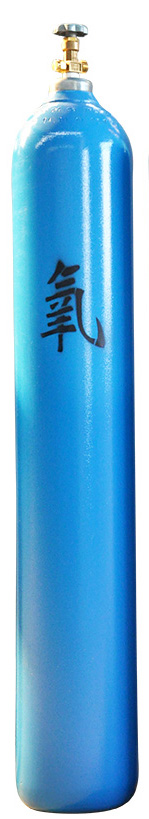

EN1964-1 Gas Cylinders
EN1964-1 Gas Cylinders
Product Descriptions
Model Outside Diameter Water
Capacity		 Height
(W/O Valve)		 N.W.(W/O Valve&Cap) Service Pressure Wall Thickness Material
(mm) (L) (mm) (Kg) (Bar) (mm)
EN140-3.4-150 140(TPED) 3.4 321 5.8 150 4.1 37Mn
EN140-3.6-150 3.6 335 6
EN140-4-150 4 365 6.4
EN140-5-150 5 440 7.6
EN140-6-150 6 515 8.8
EN140-6.3-150 6.3 545 9.2
EN140-6.5-150 6.5 557 9.4
EN140-6.7-150 6.7 567 9.5
EN140-7-150 7 595 9.9
EN140-7.5-150 7.5 632 10.5
EN140-8-150 8 665 11
EN140-9-150 9 745 12.2
EN140-10-150 10 830 13.5
EN140-11-150 11 885 14.3
EN140-13.4-150 13.4 1070 17.1
EN140-14-150 14 1115 17.7
EN159-4-150 159(TPED) 4 320 6.8 150 4.7 37Mn
EN159-4.5-150 4.5 350 7.3
EN159-7-150 7 495 9.8
EN159-8-150 8 554 10.8
EN159-9-150 9 610 11.7
EN159-10-150 10 665 12.7
EN159-11-150 11 722 13.7
EN159-12-150 12 790 14.8
EN159-12.5-150 12.5 802 15
EN159-13-150 13 833 15.6
EN159-13.5-150 13.4 855 16
EN159-13.4-150 13.5 866 16.1
EN159-13.7-150 13.7 878 16.3
EN159-14-150 14 890 16.5
EN159-15-150 15 945 17.5
EN159-16-150 16 1000 18.4
