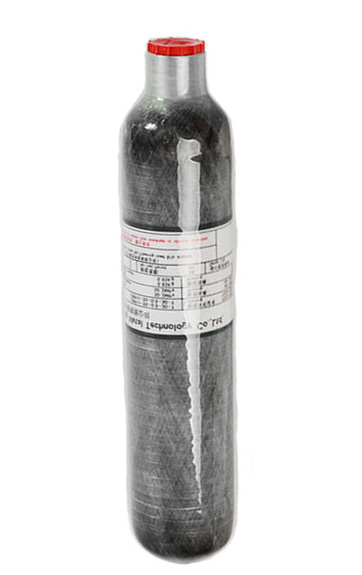

SCBA and life support cylinders
|
Product Descriptions
We have been manufacturing self-contained breathing apparatus (SCBA) and life-support cylinders for firefighters and first-responders. We offer the most comprehensive range of full-wrapped carbon composite cylinders, as well as high-pressure aluminum cylinders and hoop-wrapped cylinders.
Because lightweight aluminum cylinders are easier to move and transport than steel cylinders, they became increasingly popular in Europe with fire brigades and first responders and their support personnel who regularly handle cylinders.
Our carbon composite SCBA cylinders are designed to withstand rough treatment typically encountered in fire and rescue operations. But in more demanding situations—including training environments—exposed cylinder domes may need extra protection against impact and abrasion damage. For those tougher times, we offer a rugged, versatile line of protective boots and caps for standard 30-minute and 45-minute full-wrap carbon composite cylinders. Robustly designed for the most demanding in-service and training environments. Made from a proprietary, flame-retardant polymer. Easily installed and removed for hydrostatic retesting and inspection.
| Model | Water Capacity | Outside Diameter | Height | Net Weight | Service Pressure | Material |
| (L) | (mm) | (mm) | (Kg) | (Mpa) | ||
| CRPIII-60-0.45-30 | 0.45 | 60 | 290 | 0.5 | 30 | AA6061-T6 Liner fully wrapped with composite materials |
| CRPIII101-2.0-20 | 2.0 | 101 | 440 | 2.0 | 20 | |
| CRPIII101-2.0-30 | 2.0 | 101 | 440 | 2.0 | 30 | |
| CRPIII108-2.0-20 | 2.0 | 108 | 355 | 1.7 | 20 | |
| CRPIII115-1.4-20 | 1.4 | 115 | 261 | 1.5 | 20 | |
| CRPIII115-1.6-20a | 1.6 | 115 | 270 | 1.6 | 20 | |
| CRPIII116-3.0-30 | 3.0 | 116 | 453 | 2.8 | 30 | |
| CRPIII128-2.3-20 | 2.3 | 128 | 292 | 1.7 | 20 | |
| CRPIII128-2.4-20 | 2.4 | 128 | 302 | 1.8 | 20 | |
| CRPIII128-2.5-20 | 2.5 | 128 | 312 | 1.9 | 20 | |
| CRPIII132-2.6-20 | 2.6 | 132 | 308 | 1.9* | 20 | |
| CRPIII132-2.7-20 | 2.7 | 132 | 310 | 1.9 | 20 | |
| CRPIII135-2.4-20 | 2.4 | 135 | 285 | 1.7 | 20 | |
| CRPIII135-2.5-20 | 2.5 | 135 | 295 | 1.9 | 20 | |
| CRPIII135-3.0-20 | 3.0 | 135 | 340 | 2.1 | 20 | |
| CRPIII137-4.7-30 | 4.7 | 137 | 495 | 3.5 | 30 | |
| CRPIII140-2.3-20 | 2.3 | 140 | 268 | 1.8 | 20 | |
| CRPIII155-6.8-30 | 6.8 | 155 | 530 | 3.9 | 30 | |
| CRPIII176-9.0-30 | 9.0 | 176 | 562 | 5.6 | 30 | |
| CRPIII208-12-30 | 12.0 | 208 | 570 | 7.9 | 30 | |
| CRPIII214-15-30 | 15.0 | 214 | 620 | 10.0 | 30 |
