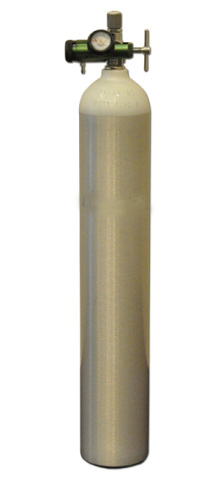

IS7285 Gas Cylinders
IS7285 Gas Cylinders
Product Descriptions
Model Outside Diameter Water
Capacity		 Height
(W/O Valve)		 N.W.(W/O Valve&Cap) Service Pressure Wall Thickness Material
(mm) (L) (mm) (Kg) (Bar) (mm)
IS108-1.4-150 108 1.4 240 2.9 150 2.9 37Mn
IS108-1.8-150 1.8 285 3.3
IS108-2-150 2 310 3.6
IS108-3-150 3 437 4.9
IS108-3.6-150 3.6 515 5.7
IS108-4-150 4 565 6.2
IS108-5-150 5 692 7.5
IS140-3.4-150 140 3.4 321 5.8 150 4.1 37Mn
IS140-4-150 4 365 6.4
IS140-5-150 5 440 7.6
IS140-6-150 6 515 8.8
IS140-6.3-150 6.3 545 9.2
IS140-6.7-150 6.7 567 9.5
IS140-7-150 7 595 9.9
IS140-7.5-150 7.5 632 10.5
IS140-8-150 8 665 11
IS140-9-150 9 745 12.2
IS140-10-150 10 830 13.5
IS140-11-150 11 885 14.3
IS140-13.4-150 13.4 1070 17.1
IS140-14-150 14 1115 17.7
IS159-7-150 159 7 495 9.8 150 4.4 37Mn
IS159-8-150 8 554 10.8
IS159-9-150 9 610 11.7
IS159-10-150 10 665 12.7
IS159-11-150 11 722 13.7
IS159-12-150 12 790 14.8
IS159-12.5-150 12.5 802 15
IS159-13-150 13 833 15.6
IS159-13.4-150 13.4 855 16
IS159-13.7-150 13.7 878 16.3
IS159-14-150 14 890 16.5
IS159-15-150 15 945 17.5
IS159-16-150 16 1000 18.4
IS232-25-150 232 25 772 30 150 5.3 37Mn
IS232-30-150 30 904 34.3
IS232-35-150 35 1035 38.6
IS232-40-150 40 1167 43
IS232-47-150 47 1351 49
IS232-50-150 50 1430 51.6
IS232-52-150 52 1483 53.4
IS232-25-200 232 25 751 31.3 200 5.2 34CrMo4
IS232-30-200 30 892 35.8
IS232-40-200 40 1156 44.9
IS232-46.7-200 46.7 1333 51
IS232-47-200 47 1341 51.3
IS232-50-200 50 1420 54
IS267-40-150 267 40 922 43.3 150 5.8 37Mn
IS267-50-150 50 1119 51.3
IS267-60-150 60 1316 59.3
IS267-68-150 68 1474 65.7
IS267-70-150 70 1513 67.3
IS267-80-150 80 1710 75.4
